Lincoln Electric

Aspect® 230 AC/DC Air-Cooled One-Pak®

Model: TTV735

Mfr. No.: K4341-1

  • Aspect® 230 AC/DC Air-Cooled One-Pak® Industrial Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$11,481.00 / Each

0 In Stock - Montreal Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Includes

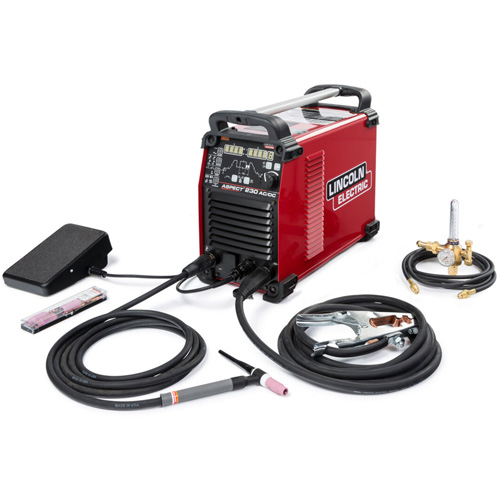

  • (1) Aspect 230 AC/DC TIG Welder, (1) Input Power Cord 10 ft (3m), (1) K870 Foot Pedal, (1) KP509 Expendables Kit for PTW-18 & PTA-26, (1) K1783-10 Air Cooled TIG Torch 200A PTA-26 Flex Head (25ft), (1) 3100211 Gas Regulator, (1) K1803-3 Ground Clamp with 15 ft Cable, (1) K1622-3 Torch Twist Mate Connector ASM

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

120 V

Phase Input Power

1 Ph/3 Ph

Hertz Input Power

50/60 Hz

Dimensions (H X W X D)

16.5" x 9.7" x 19.9" (419 mm x 246 mm x 506 mm)

Input Voltage

120-460 V

Output Range

120V: 2-150A TIG 208/230/460V: 2-230A

Polarity

AC/DC

Rated Output

120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V

  • The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding
  • A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need
  • All of the features You want can be easily customized to Your application and saved in the available memory settings
  • With up to 230 Amps of maximum output you can TIG weld up to 1/4
  • Portable, lightweight, and easy to transport
  • Save critical weld set up information in up to -9- memory locations
  • Exceptional arc response and stability
  • PowerConnect® technology 120-460V input power
