Lincoln Electric

Elevate™ SLi Battery Powered Welder TIG with Rolling Case Package

Model: TTV843

Mfr. No.: K5624-1

  • Elevate SLi Battery Powered Welder TIG with Rolling Case Package Industrial Sales

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$8,478.00 / Each

0 In Stock - Montreal Warehouse

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

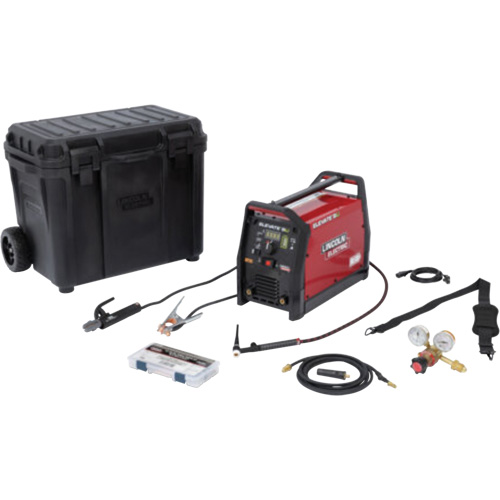

Includes

  • Elevate™ SLi Battery Powered Welder
  • 200 Amp Industrial Electrode Holder with Cable 12.5 ft (3.8 m) & Twist Mate™ (Dinse 10-25) Connector (K5612-1)
  • Work Lead 12.5 ft (3.8 m) with Ground Clamp & Twist Mate™ (Dinse 10-25) Connector (K5482-1)
  • Adjustable Shoulder Strap (KP5656-1)
  • 120V Input Cord 7.5 ft (2m) (KP5655-1)
  • Elevate™ SLi Battery Powered Welder Rolling Machine Case (K5548-1)
  • Caliber® 17 Series TIG Torch - Flex/Valve
  • 12.5 ft (3.8 m) (K4841-17FV-1)
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 1/16"-1/8" (KP4760-HD)
  • Small Twist Mate™ Torch Adapter (with Separate Gas) (K960-2)
  • Deluxe Adjustable Gas Regulator (3000369)

Voltage Input Power

120 V

Phase Input Power

1 Ph

Hertz Input Power

60 Hz

Dimensions

14" H x 9.1" W x 18.3" D (356 mm x 231 mm x 465 mm)

Weight

33 lbs. (15 kg)

Machines Processes

Stick (SMAW), TIG (GTAW)

Open Circuit Voltage

Average: 55V, Peak: 72V

Output Range

Stick: 10-145A, TIG: 4-145A

Polarity

DC

Battery Type

Lithium Iron Phosphate (LiFePO4) Battery

Charge Time

60 minutes

Country Of Origin

United States

  • Provides a powerful 145A output for highly efficient welding
  • Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance
  • Supports a wide range of welding rods, including 6010 and 7018 up to 5/32", and features Touch Start TIG functionality
  • Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile
  • Designed for easy transportation, weighing only 33 lbs. and featuring an adjustable shoulder strap for added convenience
  • Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations
  • Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to 21 sticks on a single charge
  • The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger
  • Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance
  • Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment
